Fastener Material Selection Form

Fastener Material Selection Form - Inch

The Fastener Selection Material Form allows the selection of a fastener material from a large range of standard specifications applicable to both ferrous and non-ferrous materials. The form opens the inch or metric material database depending upon which units were selected from the main program. The most common fastener materials are included (there are approximately 200 material specifications covered).

Fastener Material Selection Form - Metric

Besides the standard data on the fastener material other information is included that can be interest to the engineer. This information is selected by clicking on a tab at the top of the form.

Fastener Material Form - Property Info

Details are also provided on the form as to whether a grade or manufacturer's mark is required. Again this information is selected by clicking on a tab at the top of the form. The program also provides other information that can be of interest to the engineer - this is accessed by clicking on the appropriate button. For further details download the demo program.

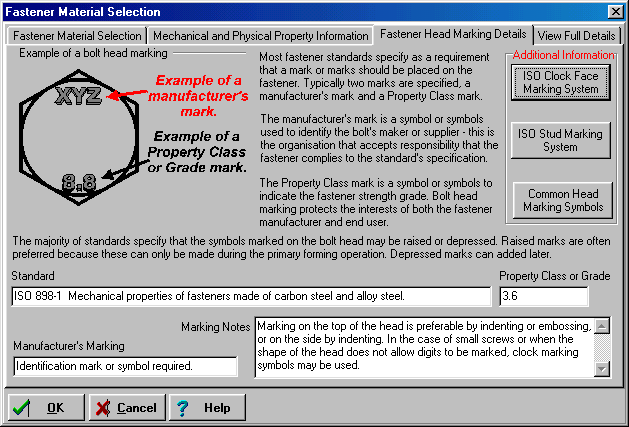

Fastener Material Form - Head Marking
